Waterproof LED Screen 20W GXtronic 60CM |SMD2835 OSRAM CHIP 3CCT | IP66
The GXtronic 60cm LED waterproof spotlight combines power and versatility with selectable wattage (10W / 15W / 18W / 20W) and 3CCT color temperature (3000K / 4000K / 6000K). Equipped with a GXtronic driver and 140 lm/W OSRAM chip SMD2835 LEDs, it offers maximum efficiency (PF > 0.9), IP66 and IK10 protection, and uniform, bright light in any environment. Its semi-transparent cover
Customizable with emergency kit and Plug & Play radar motion sensor.

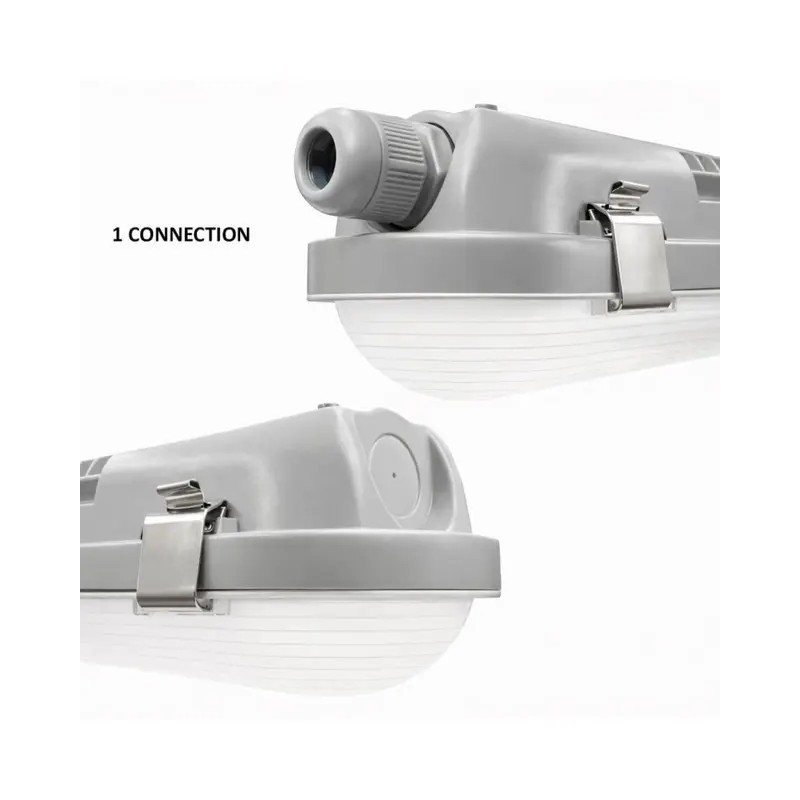

This waterproof screen has a single connection at one end.
Waterproof LED Screen 20W GXtronic 60CM |SMD2835 OSRAM CHIP 3CCT | IP66

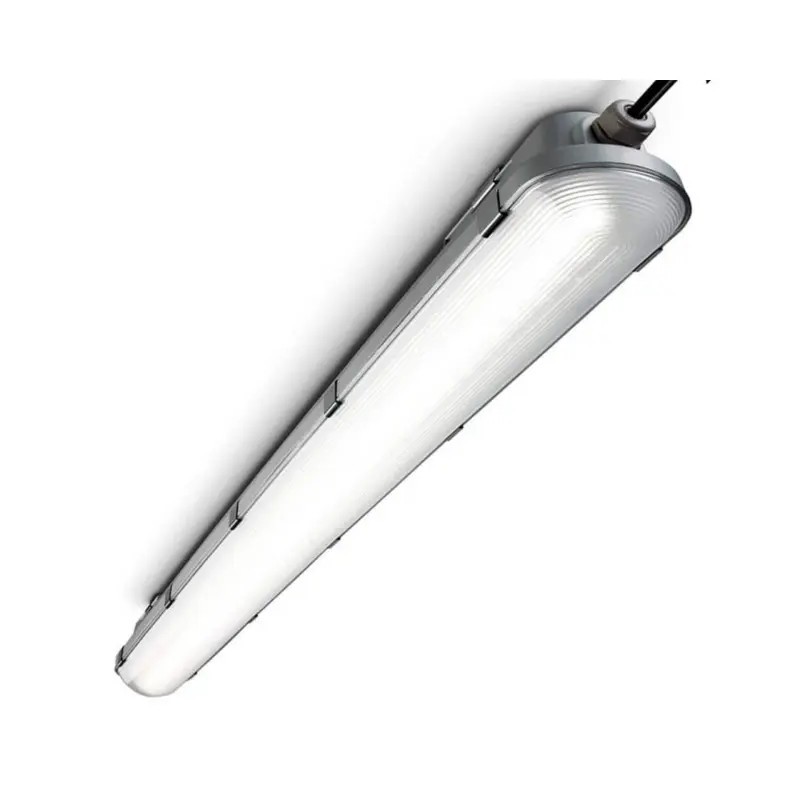

The GXtronic 60cm LED Waterproof Light Fixture is a professional luminaire designed to offer maximum efficiency, durability, and versatility in all types of environments, both industrial and commercial. Its structure, made of high-resistance ABS and polycarbonate, guarantees complete protection against dust, moisture, and impacts thanks to its IP66 and IK10 ratings, making it an ideal choice for garages, warehouses, parking lots, tunnels, industrial kitchens, or areas with water.

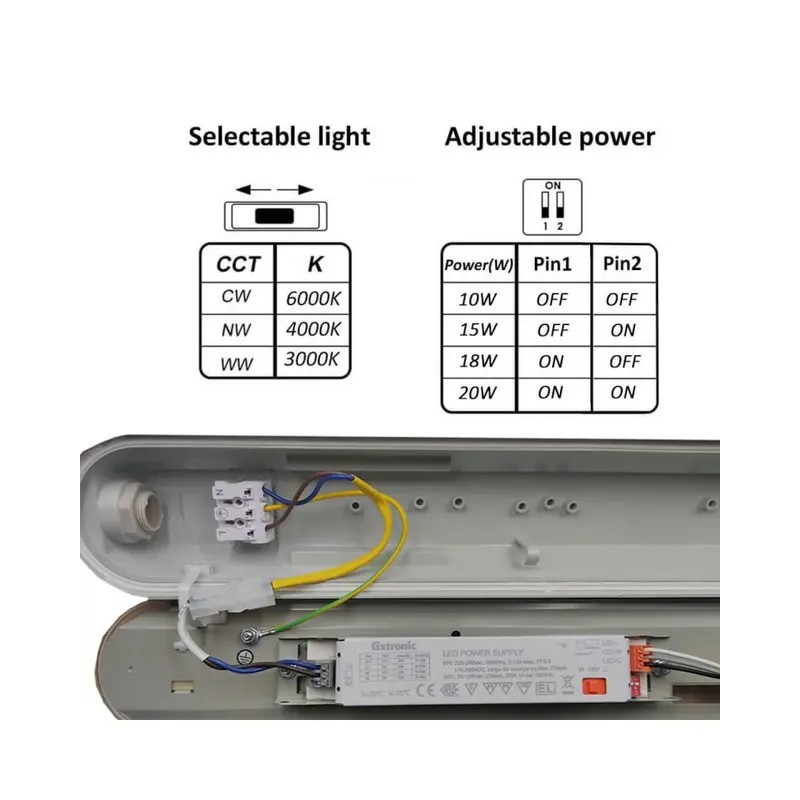

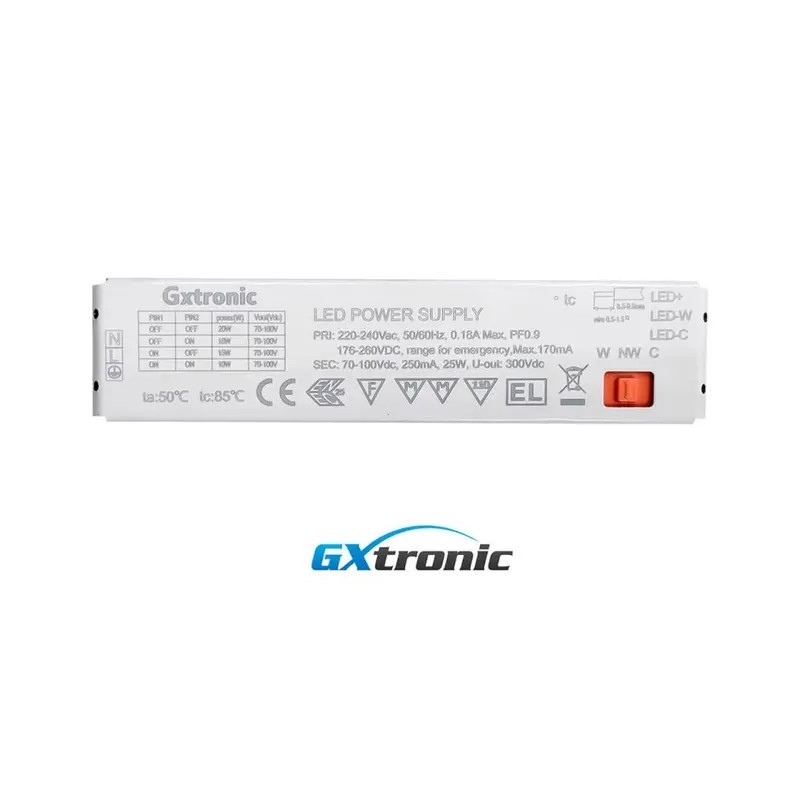

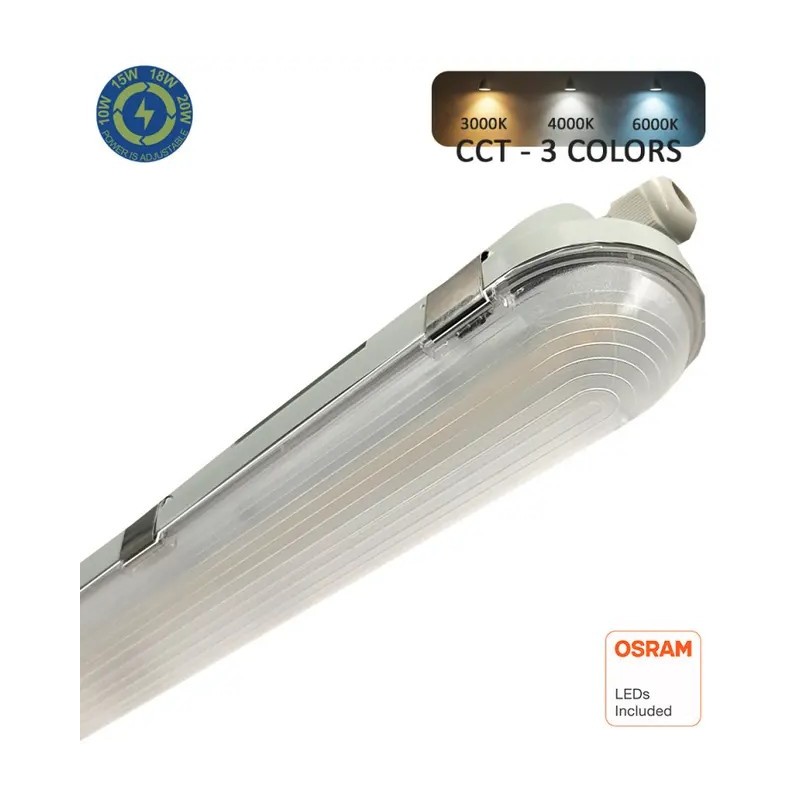

It incorporates a high-performance GXtronic driver and OSRAM CHIP SMD2835 diodes with a luminous efficiency of 140 lm/W, ensuring powerful and stable lighting with a power factor greater than 0.9. Its multi-selectable power system (10W / 15W / 18W / 20W) and its 3CCT technology (3000K / 4000K / 6000K) allow you to adjust both the intensity and color temperature according to the needs of the space or project.
Thanks to its semi-transparent diffuser, the light is distributed evenly and without glare, ensuring visual comfort and energy efficiency. It can also be customized with an emergency kit to guarantee continuous lighting during power outages or with a Plug & Play radar motion sensor, ideal for passageways or intermittent use.
Main advantages of the GXtronic 60cm 20W LED Waterproof Screen with Osram Chip:
Maximum protection IP66 and IK10 – Ideal for humid or dusty environments.
Power and color selection (3CCT) – Allows you to adapt the lighting to any environment.

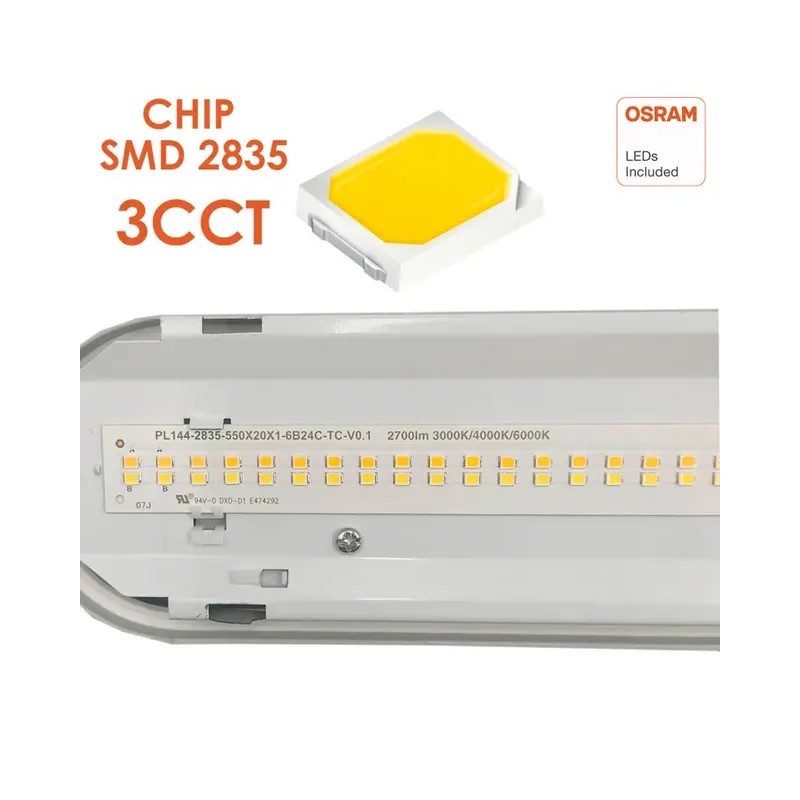

OSRAM SMD2835 chip + GXtronic driver – Guaranteed quality, durability and stable performance.
Semi-transparent diffuser – Uniform and glare-free light.
High efficiency: 140 lm/W – More light with less energy consumption.
Compatibility with Plug & Play emergency sensors and kits – Quick and safe installation.
Robust and professional design – Impact and corrosion resistant materials.
Uses and applications of the GXtronic 60cm Osram Chip 20W LED Waterproof Screen:

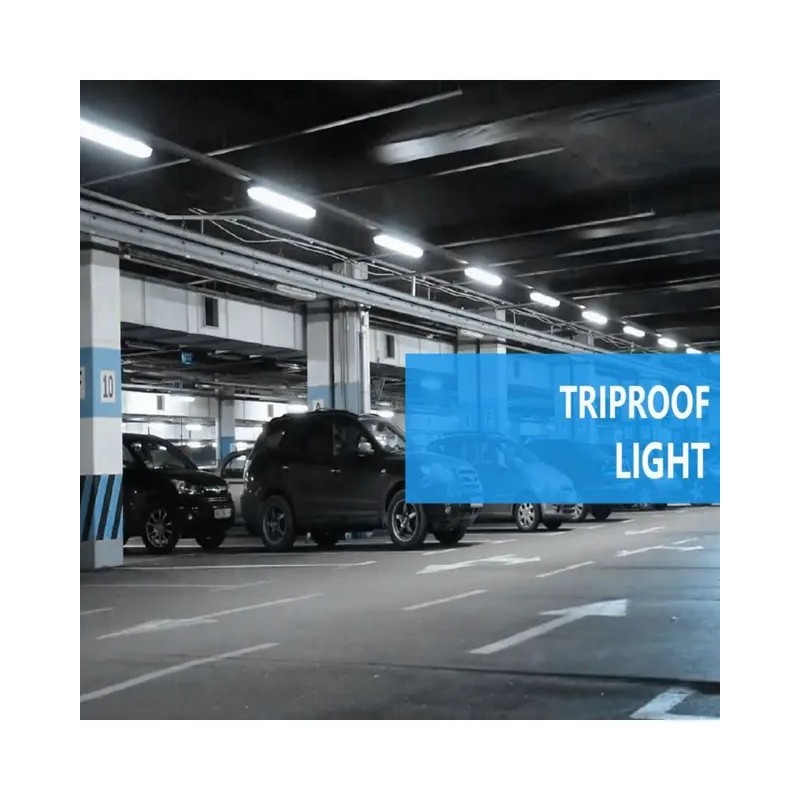

Underground parking lots and garages

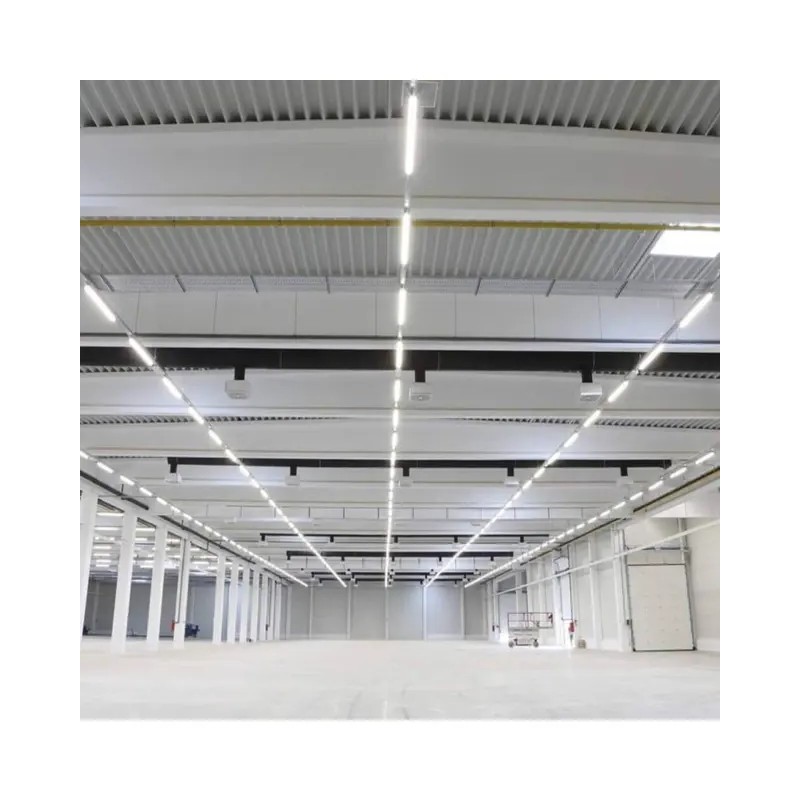

Industrial buildings and logistics warehouses
Cold storage rooms and professional kitchens

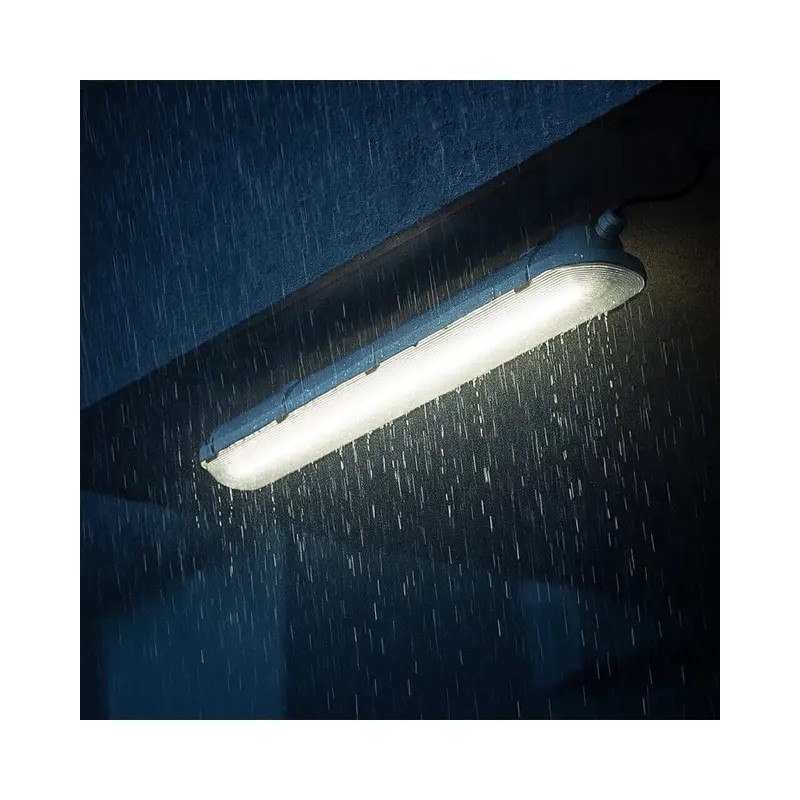

Passageways, covered corridors or exterior access points
Sports facilities and workshops
At Indiluz we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE.
| REFERENCE | TPGX60CM-CCT-91458 |
|---|---|
| Nominal power | Power Select: 10W / 15W / 18W / 20W |
| Nominal voltage | 220-240V |
| Light temperature | 3CCT SELECT 3000K-4000K-6500K |
| CRI - Index Chromatic Reproduction | +80 |
| Construction material | ABS + Makrolon® 2807 |
| Light-lm | 2800Lm |
| Type of LED | SMD 2835 OSRAM CHIP |
| Angle opening (º) | 120° |
| Efficacy LED diode (LM / W) | 140 Lm/W |
| Luminous efficacy (LM / W) | 130Lm/W |
| Certificates | CE - RoHS - EMC - UL |
| Ip | IP66 |
| Estimated Life LED Diode (H) | 35.000 |

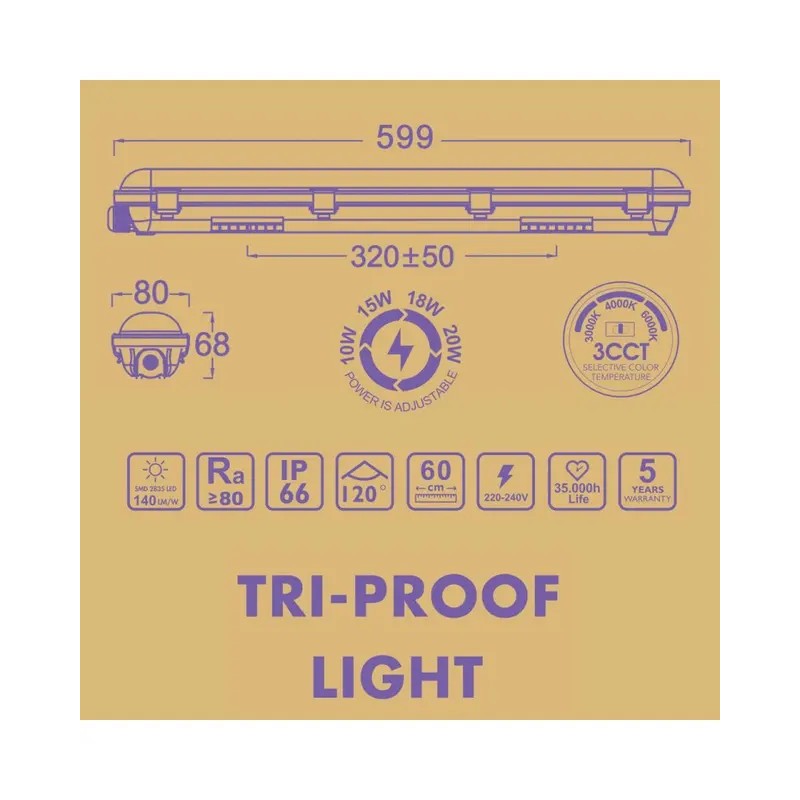

| Measures (mm) | L: 599 W:80 H:68 mm |
| Power factor (PF) | 0.95 |
| Work frequency (Hz) | 50/60Hz |
| Temperature range (ºC) | -20°C ~ +55°C |
| Lit cycles | 100.000 |
| Start time (s) | 0,2s |
| Additional information | Customizable with Plug & Play emergency kit and Radar motion sensor. |
| Driver included | Driver GXTronic |
| Guarantee years | 5 |
| Protección impacto (IK) | IK10 |
| Clase Energética (2023 - UE-2019/2015) | E |
